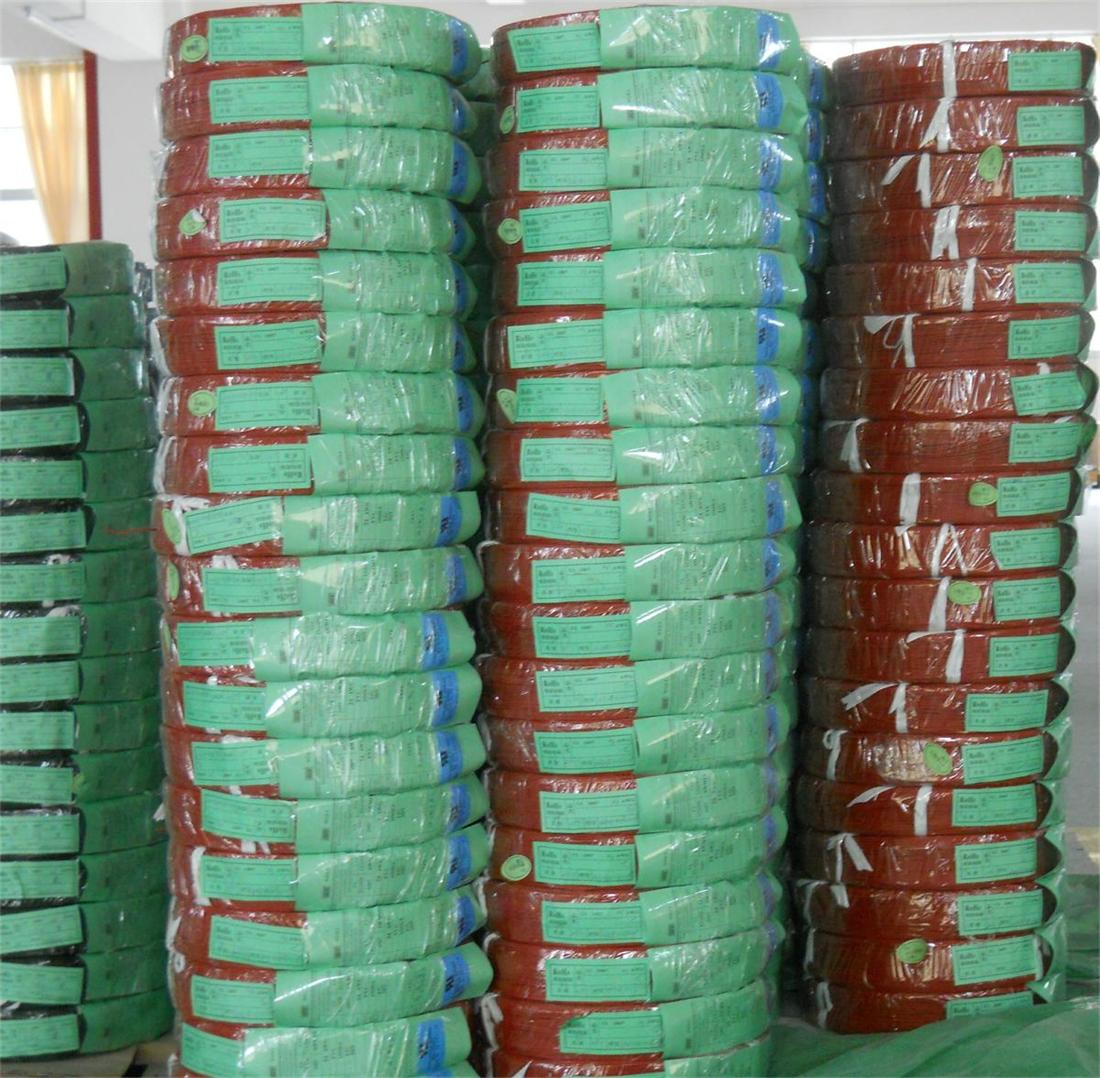

UL3136高温硅胶电子线
上一个:UL3350的硅胶电子线下一个:UL3589高温硅胶电子线
Product Description: | Applications: | ||||||
■Conductor:26AWG---20AWG | ■Apply to Household appliance、lumination&Lighting | ||||||
■Tinned,annealed,stranded or solid copper conductor. | Metallurgy&Headlamp、electric machines、tempurature | ||||||
■Silicone Rubber insulation | sensor、Military series、Metallurgy Chemical series、 | ||||||
■Rated temperature:150℃.Rated voltage:300volts | Motor cars&Ships、Electrical installation | ||||||
■Uniform thickness of wire to ensure easy stripping and cutting. | 应用: | ||||||
■Passes UL VW-1&CUL FT1 vertical flame test | ■适用于家用电器、照明灯具、电子设备、温度传感器、 | ||||||
■Top coated conductor is available | 航天、航空、军工产品、冶金化工、汽车船船、 | ||||||
说明: | 电力安装等连接线。 | ||||||
■导体:30AWG---20AWG | Construction: | ||||||
■导体使用单股或绞线裸铜或镀锡铜 | 构造: | ||||||
■硅橡胶绝缘. | |||||||
■额定温度:150℃额定电压:300Volts | |||||||
■使用标准厚度,易剥,截断容易。 | |||||||
■可通过UL VW-1 及 CUL FT1 ,垂直燃烧测试 | |||||||
■可使用先绞后镀(TC)为导体 | |||||||
UL Style& Cul Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20℃ |
||
AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
UL3136 CUL AWM I A (Stranded) |
26 | 7/0.16 | 1.143 | 2.78 | 2000 | 610 | 150 |
24 | 7/0.20 | 1.143 | 2.90 | 2000 | 610 | 94.2 | |
11/0.16 | 1.143 | 2.90 | 2000 | 610 | |||
22 | 7/0.25 | 1.143 | 3.05 | 1000 | 305 | 59.4 | |
17/0.16 | 1.143 | 3.05 | 1000 | 305 | |||
20 | 7/0.31 | 1.143 | 3.27 | 1000 | 305 | 36.70 | |
21/0.178 | 1.143 | 3.27 | 1000 | 305 | |||
UL3136 CUL AWM I A (Stranded) |
26 | 1/0.40 | 1.143 | 2.78 | 2000 | 610 | 140 |
24 | 1/0.51 | 1.143 | 2.90 | 2000 | 610 | 87.5 | |
22 | 1/0.64 | 1.143 | 3.05 | 1000 | 305 | 55.0 | |
20 | 1/0.81 | 1.143 | 3.27 | 1000 | 305 | 34.6 | |
以上数据仅供参考,不作为正式的设计依据,产品规格以双方确认的规格书承认为准!最终解释权归稳畅电子制品有限公司所有。 |
