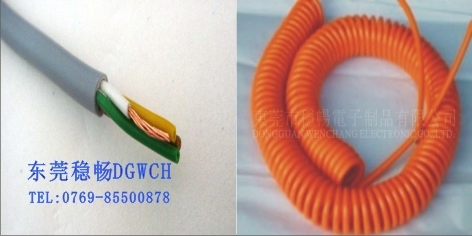

UL20279弹簧线/弹弓线/曲线/螺旋线
| Product Description: | ||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | ||||||||
| ■PVC/SR-PVC/PP/TPU/XL-PE insulation. | ||||||||
| ■TPU jacketed. | ||||||||
| ■Rated temperature:80℃.Rated voltage:30volts | ||||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | ||||||||
| ■Passes UL VW-1&CUL FT1/FT2 vertical flamt test | ||||||||
| ■Tinned or bare copper winding or woven isolation. | ||||||||
| ■A collection of cores can be isolated tissue-paper package. | ||||||||
| aluminum foil or mylar. | ||||||||
| ■Executive Standard:UL758 UL1581 CSA22.2. | ||||||||
| 说明： | ||||||||
| ■导体使用单股或绞线裸铜或镀锡铜 | ||||||||
| ■PVC/SR-PVC/PP/TPU/XL-PE绝缘。 | ||||||||
| ■TPU外覆。 | ||||||||
| ■额定温度：80℃额定电压：30Volts | ||||||||
| ■使用标准厚度，易剥，截断容易。 | ||||||||
| ■可通过ULVW-1及CUL FT1/FT2，垂直燃烧测试。 | ||||||||
| ■镀锡或裸铜或编织隔离。 | ||||||||
| ■芯线集合可包铝箔麦拉或棉纸隔离。 | ||||||||
| ■执行标准:UL758 UL1581 CSA22.2. | ||||||||
| APPlications: | ||||||||
| ■For general purpose internal wiring of | ||||||||
| electronic and electricalequipment | ||||||||
| 应用： | ||||||||
| ■用于电子及电器设备内部配线 | ||||||||
| Construction: | ||||||||
| 构造： | ||||||||
| UL Style &CSA Type |
Conductor Cores 导体芯数 |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Nom.Dia 绝缘线径 |
Jacket Thickness 被覆厚度 |
Overall Dimeter 完成外径 |
Conductor Resistance at 20℃导体电阻 |
|
| 线号 | 线数/线径 | |||||||
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL20279 （Stranded) 绞线 |
2C | 30 | 7/0.10 | 0.25 | 0.80 | 0.8 | 3.40 | 381.00 |
| 28 | 7/0.127 | 0.90 | 3.60 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 3.90 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 4.20 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 4.60 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 5.00 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 5.60 | 23.20 | ||||
| 3C | 30 | 7/0.10 | 0.25 | 0.80 | 0.8 | 3.70 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.00 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 4.20 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 4.50 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 4.80 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 5.30 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 6.00 | 23.20 | ||||
| 4C | 30 | 7/0.10 | 0.25 | 0.80 | 1.0 | 4.30 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.60 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 4.80 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 5.10 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 5.50 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 6.10 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 6.80 | 23.20 | ||||
| 5C | 30 | 7/0.10 | 0.25 | 0.80 | 1.0 | 4.60 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.90 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 5.20 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 5.40 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 6.00 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 6.70 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 7.40 | 23.20 | ||||
| 6C | 30 | 7/0.10 | 0.25 | 0.80 | 1.0 | 4.90 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 5.30 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 5.60 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 6.00 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 6.40 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 7.00 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 7.90 | 23.20 | ||||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有 | ||||||||
